LAMINATED GLASS

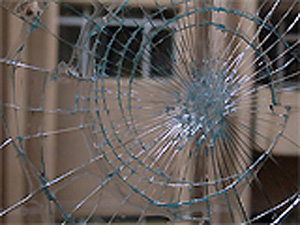

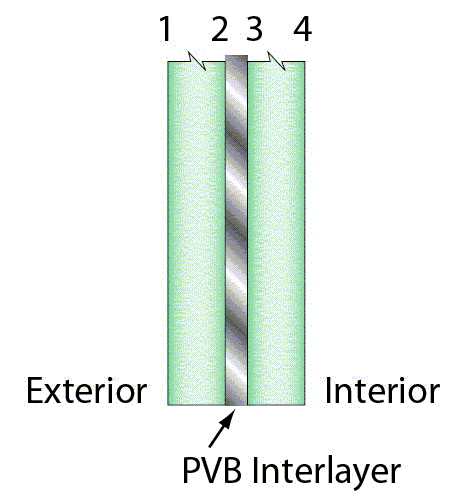

Laminated Glass is two or more panes of glass with one or more layers of PVB (Polyvinyl Butyral) sandwiched between them and treated. In case of glass breakage, the glass fragments remain adhered to PVB film reducing the risk of injury. This glass is also called Security Glass.



Distinguished Features:

SAFETY & SECURITY

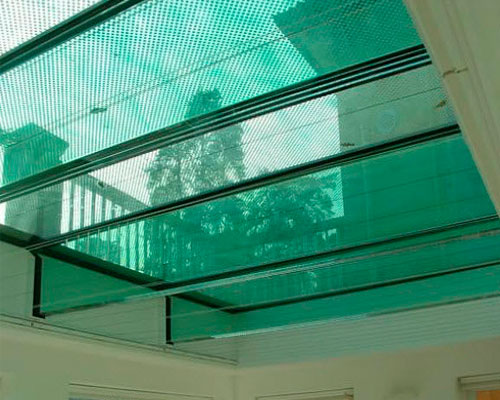

Laminated Glass usage offers high safety & security as it has low chances of injury since the PVB (Poly Vinyl Butyral) interlayer holds the glass pieces together even in case of breakage. It is ideal for use in skylights and balustrades

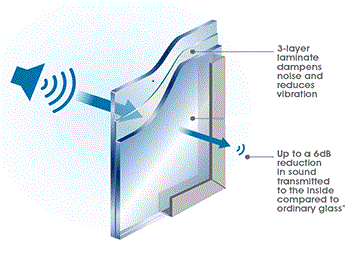

SOUND REDUCTION

The sound damping quality of PVB layer, due to its’ visco elastic property, make laminated glass an effective sound control product. Laminated Glass is used to keep away unwanted noise.

d3

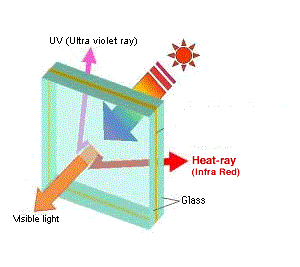

UV REDUCTION

Laminated Glass can block over 99% of the UV energy while allowing most of the visible light through and this can help long last valuable household items and save them from fading effects of UV radiation.

d4

SIZES AVAILABLE:

Max:    2440 MM x 3660 MM (8’ x 12’)

Min:    305 MM x 305 MM (1’ x 1’)

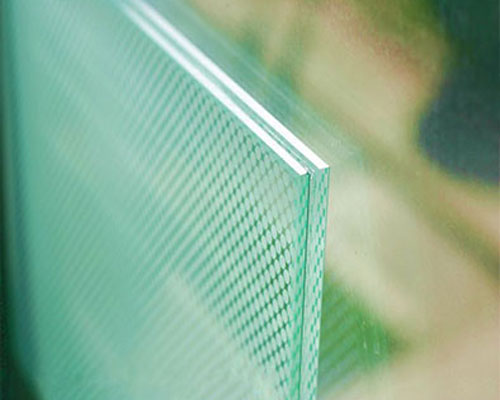

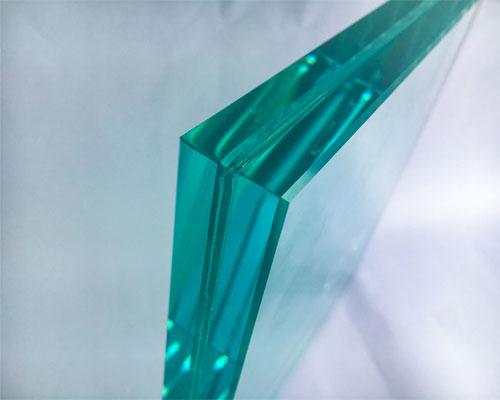

Glass Thickness:  Any glass combination like 4+4, 5+5, 6+6 and so on

Layer Thickness:  0.38 mm, 0.76 mm, 1.14 mm, 1.52 mm or according to need

Variants: Clear, Tinted, Reflective, Low E

Standard Used: IS 2553 Part 1 and FOSG Manual



WHY MIRAGE

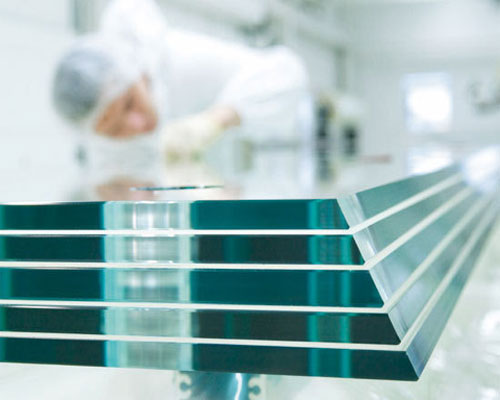

State of the art facility with Experienced Staff

Toughened, Laminated and Insulated Glass available under one roof

Best Quality European film TROSIFOL is used

Supplies to Airports

Best Quality at Economical Price

Fast Grievance Redressal System



GENERAL CHARACTERISTICS OF LAMINATED GLASS:

Sr. No. CHARACTERISTIC DESCRIPTION
 1 Safety Approved as Glazing Material for High Rise Buildings, Canopies, Balustrades and Walkways
 2 Site Alterations Not Possible
 3 Optics Distortion permitted as per Standard Used
 4 Flatness Slight bow & Corrugation is present as per Standard Used
 5 Spontaneous Breakage Rare



APPLICATIONS OF LAMINATED GLASS

Canopies

Skylight

Facades

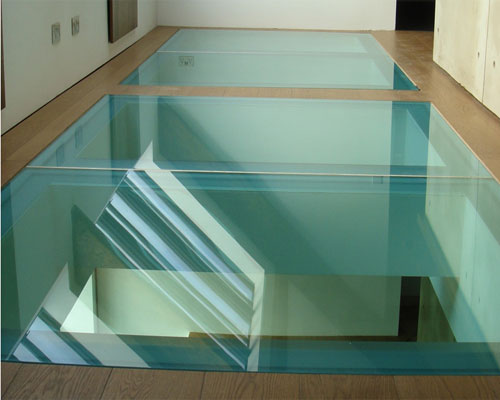

Walkways

Airports

Sound Studios

Museums

Automotive

Staircase

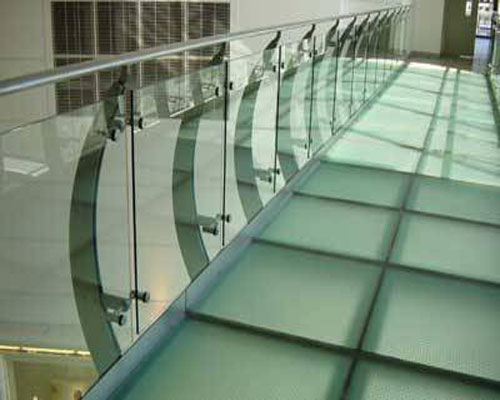

Balustrades

Places where public safety is of utmost importance



CONTACT US

Contact us in order to get the best technical suggestion on glass usage for your Home, Office, Factory, Villa or place of your choice

You can reach us by mail, mobile, through our dealer network, personal visit
